Wall assessment, epoxy anchor installation, and load reinforcement before any cantilevered stair system is anchored. No assumptions about what's in the wall.

Request a Consultation (786) 756-8812

At Houston Floating Stairs , wall reinforcement is part of every cantilevered stair project — not an optional add-on that gets quoted separately after we're already on-site. A cantilevered stair transfers all of its vertical load and a significant bending moment into the anchor wall. That wall has to be able to take it. Most residential walls in Houston homes weren't framed with that load in mind, and many of them need work before an anchor pattern can be set.

The assessment process starts with understanding what's in the wall. Houston homes built on concrete slab foundations typically use wood-frame exterior and interior walls. We use a stud finder and inspection camera where needed to map stud spacing, locate blocking, identify any plumbing or electrical in the anchor zone, and assess the sheathing on exterior walls. We don't anchor to a wall we haven't assessed. Assumptions about stud spacing in older Houston homes — particularly in Meyerland and the Heights where 1950s construction used non-standard framing — have a way of being wrong.

When reinforcement is needed, we add blocking between studs in the anchor zone, sister additional studs where the load concentration is highest, and install plywood sheathing on the cavity face if the existing material is inadequate. This work is done before any anchor bolt holes are drilled. The wall gets built to take the load, then the anchors go in.

Epoxy anchor systems are the standard for structural cantilever connections in wood-frame construction. We use a two-component epoxy rated for the specific anchor bolt diameter and embedment depth specified in the engineering drawings. Cure time matters — we don't torque anchors or set loads before the epoxy has fully cured. Rushing this step produces anchors that feel solid and fail under load.

Load path verification is the last step before the stringer goes up. We confirm that the load from the anchor wall transfers to the floor system and ultimately to the concrete slab foundation below. In some Houston homes, particularly those with post-frame additions or converted garage spaces, the load path has gaps that need to be closed before the stair anchor is structural. We find those gaps in the assessment, not after the fact.

Get a Quote

Ready to get started?

Wall assessment is the first step of any cantilever stair project. We scope it before any design decisions are made.

Schedule Consultation (786) 756-8812

Credentials

✓ Licensed & Insured
✓ Full Wall Framing Assessment
✓ Structural Epoxy Anchor Systems
✓ Harris County Permit-Ready Documentation

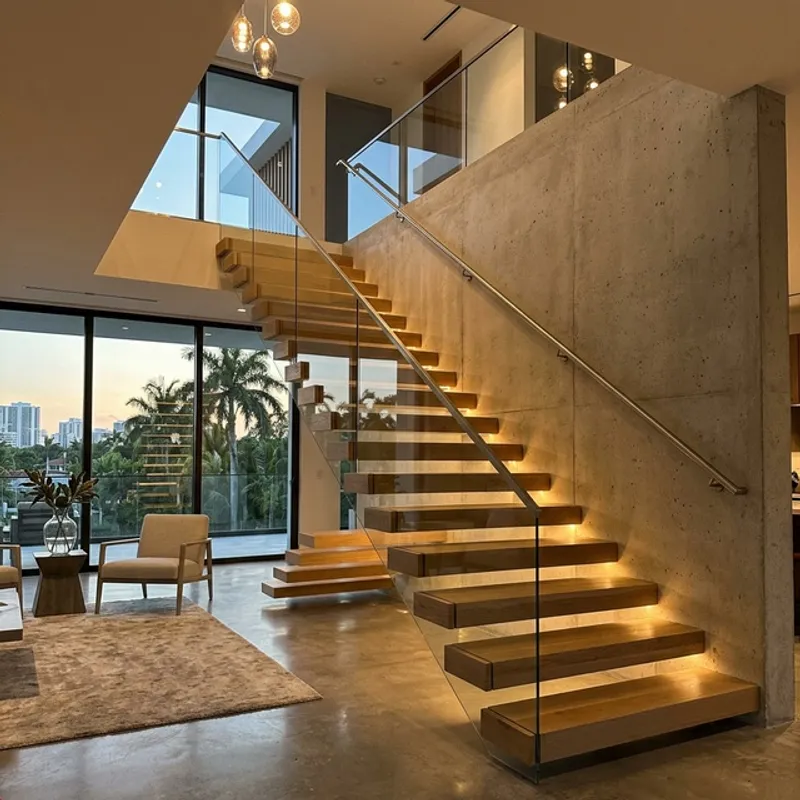

Wall reinforcement for cantilevered stair anchor in Houston home

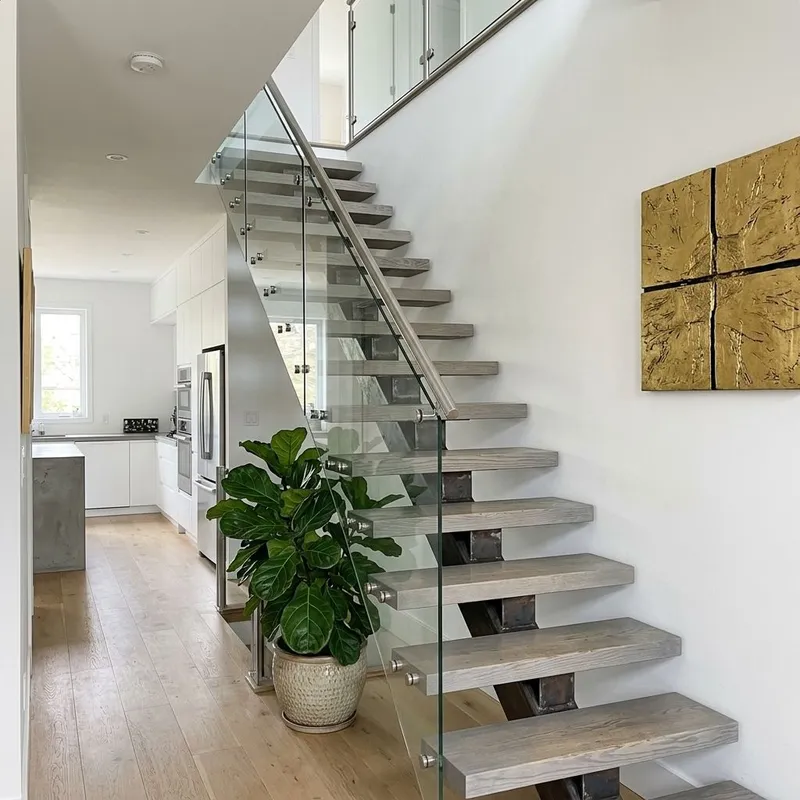

Structural engineering documentation for floating stair in Houston

Common Questions

Structural Wall Reinforcement — FAQ

How do I know if my wall needs reinforcement before a floating stair can be installed?

You won't know until we assess it. That's the honest answer. The anchor wall for a cantilevered stair needs to resist both vertical load and the bending moment from the cantilever. Most residential walls weren't framed to those specs. Walls with studs at 24-inch centers, no blocking in the anchor zone, or single-layer gypsum over minimal sheathing usually need work. We assess every anchor wall before any design or cost commitment is made.

What does wall reinforcement actually involve?

It depends on what the assessment finds. At minimum, it means adding blocking between studs in the anchor zone and verifying that the anchor bolt pattern transfers load to enough framing members. In walls where the stud spacing is wrong or the sheathing is inadequate, we add plywood to the cavity face and potentially sister additional studs to concentrate the load over more framing. In concrete or CMU walls, we drill and set chemical anchors into the masonry itself — a different process but the same goal.

How much does wall reinforcement add to the project cost?

For a standard wood-frame wall with adequate stud spacing, reinforcement typically adds $800 to $2,500 to the project — it's mostly labor and blocking material. More significant reinforcement — additional framing, plywood sheathing, or work in a concrete or masonry wall — can run $3,000 to $6,000 depending on scope. We price it exactly after the assessment, so it's on paper before you commit.

Does wall reinforcement add to the project timeline?

Usually 1 to 3 days. Reinforcement work happens before fabrication is complete in most cases, so it runs in parallel with the shop schedule and doesn't extend the total project duration. The exception is when we find a load path problem that requires changes to the floor system — that can add a week depending on scope. We flag those situations in the assessment.

What's the difference between a wood stud wall and a concrete wall for stair anchoring?

Wood stud walls allow bolt anchors through the framing to distribute load across multiple studs with blocking and plates. Concrete or CMU walls are anchored with chemical anchor bolts — threaded rod set in epoxy-filled drill holes. Both can achieve the required anchor strength, but the detailing is completely different. In Houston, most interior walls are wood frame. Some older commercial conversions in Midtown and Montrose have concrete or masonry walls that require the chemical anchor approach.
